Bimma EWD - Wiring Diagrams

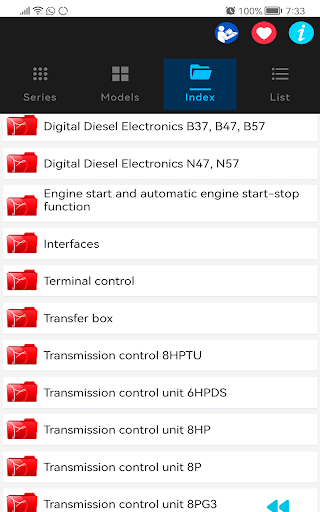

This application contains all the electrical wiring diagrams and the location of electronic components (ECU, Fuse Box..) for BMW cars from 1998 to 2026. Regularly updated for trustful Electrical wiring diagrams and can be used as a reference when you do repairing BMW cars. Currently includes the following models (all models from 1998-2026): 1 series : E81, E82, E87, E88, F20, F21, F40, F52, F70 2 series : F22, F23, F45, F46, F87, G42, U06, G87 3 series : E46, E90, E91, E92, E93, F30, F31, F34, F35, F80, G20, G21, G28, G80, G81 4 series : F32, F33, F36, F82, F83, G22, G23, G26 G82 ,G83 5 series : E39, E60, E61, F10, F11, F07, F18, G30, G31, G38, F90, G60, G61, G68, G90, G99 6 series : E63, E64, F12, F13, F06, G32 7 series : E65, E66, E67, E68, F01, F02, F03, F04, G11, G12, G70, G73 8 series : F91, F92, F93, G14, G15, G16 X series : E84, E83, E53, E70, E71, F48, F39, F15, F16, F25, F26, F85, F86, F95, F96, F97 F98, G01, G02, G05, G06, G07, G08, G09, G45, G48, U10, U11, U12 Z series : E52, E85, E89, G29 I series : I01, I12, I15, I20 Application features: - Download function - Print function - Favorites - No ads
